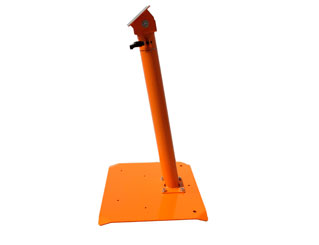

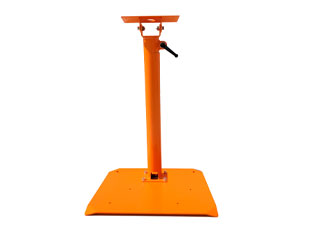

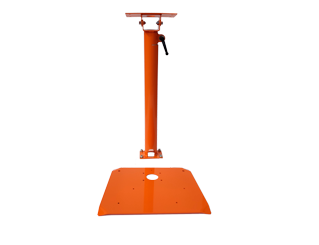

Metal foot adjustable PRB05 ® (installation PCB03)

Referencia: PRB05
Marca: Star Automation

Adjustable feet can be used for PCB3® installation and for many other uses

Support for Bimanual

FEATURES:

  • Two telescopic tubes of Ø55 and Ø60 mm with a lever to fix the selected height angle and turn position.
  • Two cable entries at bottom side and an Ø48 mm PVC cone at the top to retain the cables.
  • A plate of 200x90x3 mm on top side prepared to assemble the PCB3®, and lever for the inclination adjustment.
  • A robust and stable base plate with two Ø10,5 mm holes to fix the metal foot on the floor.
  • The PRB05 base plate is prepared to accept two foot control unit.
  • Steel made.
  • Standard paint RAL2003 orange textured.
  • Weight: 9,2 Kg.

Dimensions:

  • Base plate: 435 x 360 x 6 mm
  • Height: 720 – 1170 mm (PCB3® installed)
  • Accesories: 2 safety foot control (optional)
  • Weight: 9,2 Kg.
  • Color: RAL 2003 (other colours available)

NOTE: The adjustable metal foot PRB05 is sold loose and you can use to place other types of mechanisms.
