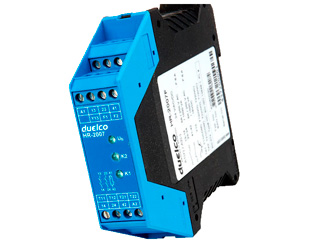

Relé de mando a dos manos HR-2007F (24V AC/DC)

Referencia: 42080030
Marca: Duelco

Módulo de mando a dos manos para usar con botones mecánicos en aplicaciones de dos manos (Pupitre de mando a dos manos (Bimanual PCB3)

(24V AC/DC y 230V AC)

(Two-hand CONTROL relay HR-2007)

Características técnicas:

  • Relé de mando a dos manos HR-2007F
  • Categoría 4, Performace level e acc. to EN ISO 13849-1 Tipo III C, EN 574
  • 2 contactos NA
  • 1 contacto NC / 1TR
  • Carga de contacto: AC 6 A / DC 6 A
  • Tensión de alimentación: 24V AC/DC (versión 230V AC)
  • Supervisión de contactores externos
  • Indicador LED de alimentación y del estado de K1 / K2
  • Carcasa de 22,5 mm para ahorro de espacio con terminales fijos
  • Montaje sobre carril DIN
  • Certificación EN ISO 13849-1
  • Cumple con MD, EMC, LVD (98/37/EC, 92/31/EEC Y 73/23/EEC)
  • PL d

Certificación:



Aplicación:



 VERSIÓN 230V AC (Ref. 42080031)



-----

Technical features:

- Performace level e acc. to EN ISO 13849-1

- Type IIIC (EN 574)

- Status-/fault indication via LEDs

- 2 NO safety outputs

- Short circuit monitoring

- Available with 230VAC and 24V AC/DC supply voltage



What can the new Duelco two-hand relay HR-2007 offer you?

- Simplicity

- Fast and easy installation via user friendly connection examples

- Two-hand control relay for dangerous work processes such as punching or pressing

- Verification of the operation of both control switches within max. 0.5s

- Status-/fault indication LEDs for indication of the status of the internal relays, the outputs and the supply. The LED signalling can reduce trouble shooting time.

Technical facilities regarding safety requirements:

- Forced contacts

- Transistor output

- 2 NO contacts

- 1 NC contact

User’s advantages:

- Safety category 4 / performance level e acc. EN ISO 13849-1 and IIIC cf. EN 574

- Monitoring of external contacts (F1-F2)

- 2 NO contacts, AC1: 230 V AC / 6A ; DC1: 24V / 6A 1 transistor output 18 VDC

- Voltage versions: 24V AC/DC and 230 VAC

- Design is based on the european standard, EN 60204-1/EN 574

- 22,5 mm slimline housing

- LED indication for power, channel 1 and channel 2

- Complies with MD, EMC, LVD (98/37/EC, 89/336/EEC & 93/68/EEC)
